UL listed 2 hour commerical fireproof steel door with glass panel UL listed 2 hour commerical fireproof steel door with glass panel UL listed 2 hour commerical fireproof steel door with glass panel UL listed 2 hour commerical fireproof steel door with glass panel UL listed 2 hour commerical fireproof steel door with glass panel

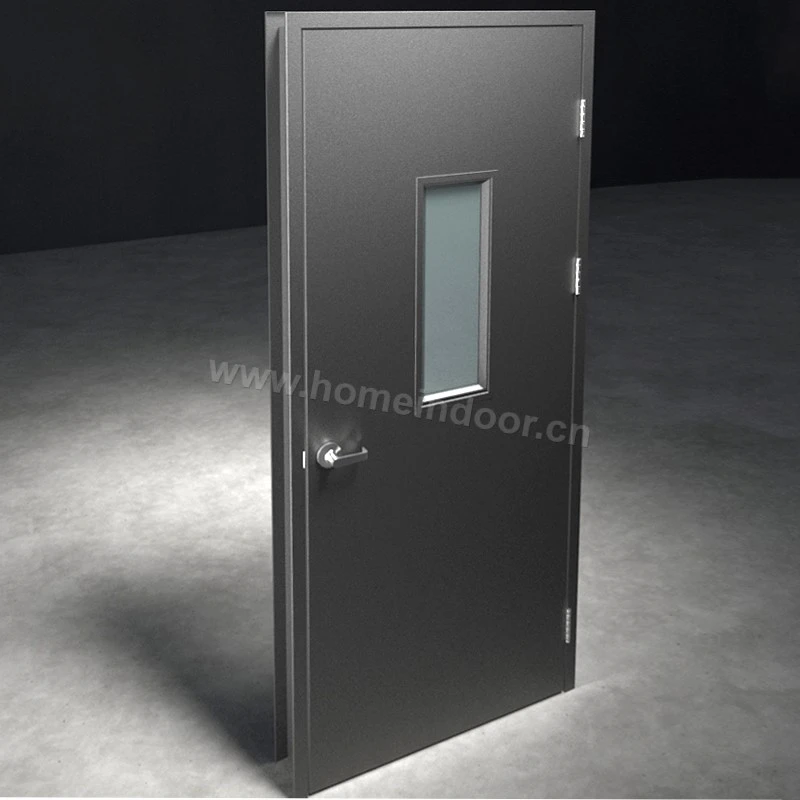

Homein UL listed 2 hour commerical fireproof steel door with glass panel

MOQ: 1PCS Custom Size Fast Delivery Quality Assurance
  • Item NO.:

    CMD08
  • Door Type.:

    Single door, swing door
  • Material

    Galvanized Steel + Glass
  • Application:

    Commerical building
  • Color:

    Powder-coating,Grey
  • Design:

    Flush door with glass lite
  • Style:

  • Lead Time:

    20 days
  • Suppliy ability:

    3000 Sets per Month
  • Place of Origin:

    Yongkang city, China
  • Certificate:

    UL BS476
  • Ref Price:

    250 USD

The UL certified 2-hour commercial fireproof steel door with glass panel is a premium fire-rated solution designed to deliver both safety and visibility in commercial and industrial environments. Engineered to meet rigorous UL fire resistance standards, this fireproof steel door with glass can withstand direct exposure to fire for up to two hours, providing critical protection by delaying the spread of flames and smoke. It is ideal for use in offices, stairwells, corridors, and other areas that require both fire protection and transparency.

The door leaf is constructed from 1.0mm galvanized steel, paired with a lightweight porous mineral core that provides exceptional thermal insulation and fire resistance. Its interlocking seam design enhances structural stability and minimizes heat transfer. The door frame is made of 1.5mm galvanized steel and is available in two configurations: a fully welded frame for permanent installations or a knock-down frame for flexible, on-site assembly.

A standout feature of this fireproof steel door with glass panel is the customizable fire-rated glass insert, which allows natural light and visibility without compromising safety. Available in three types—wired glass, laminated isolation glass, and ceramic glass—the glazing options provide varying levels of fire and impact resistance to suit different project requirements. The glass panel frame is made from steel with a screwless interlocking construction, offering a clean appearance and added strength. Additionally, a high-expansion-rate smoke seal is inserted around the glass frame. In the event of a fire, this seal expands to close off the gap, preventing the passage of smoke and flames.

Door sizes are fully customizable up to a maximum width of 1250mm and height of 3000mm, making this UL certified fireproof steel door with glass a versatile and reliable choice for fire protection without sacrificing visibility or design.


Door material 0.8~1.2mm Galvanized steel
Frame material 1.2~1.8mm Galvanized steel
Door core Honeycomb; PU; mineral core; acoustic wool
Finish Poweder coating
Leaf thick Std:45mm (customizable)
Width Std:3ft (customizable Max: 1250mm single leaf)
Height Std:7ft (customizable Max: 4000mm)
Hardware Lock; Hinge; Closer
STC Max STC56
Fire rate Max 120min
Width Std:3ft (customizable Max: 1250mm single leaf)
door handing Right hand interior
Right hand interior

Stand at outside; hinge at right hand; lock at left hand, door swing to inside

door handing Left hand interior
Left hand interior

Stand at outside; hinge at left hand; lock at right hand, door swing to inside

door handing Right hand outside
Right hand outside

Stand at outside; hinge at right hand; lock at left hand, door swing to outside

door handing Left hand outside
Left hand outside

Stand at outside; hinge at left hand; lock at right hand, door swing to outside

Door Construction (Optional)

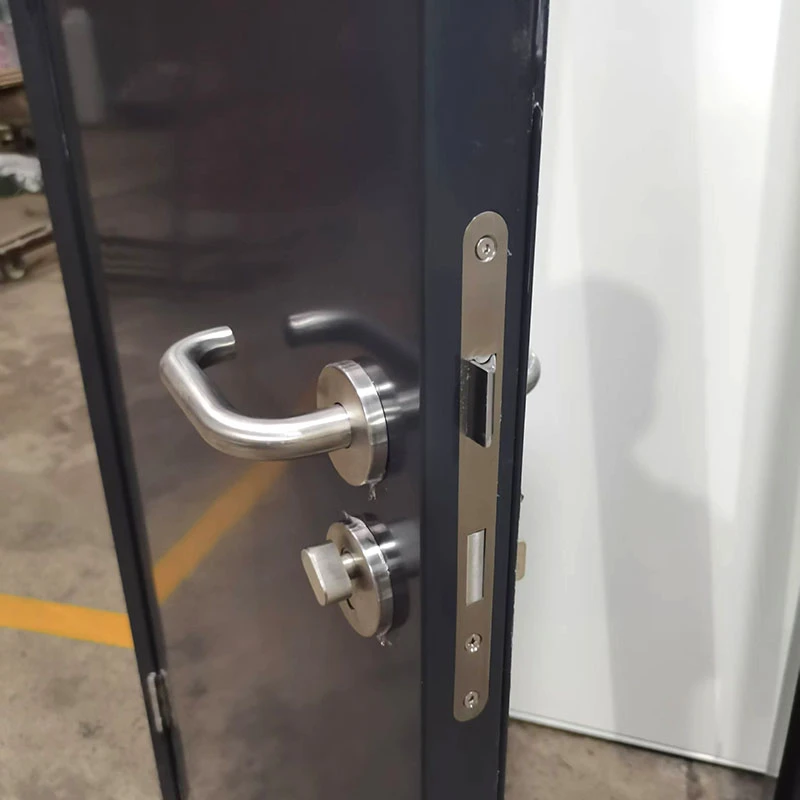

Standard Door Hardware

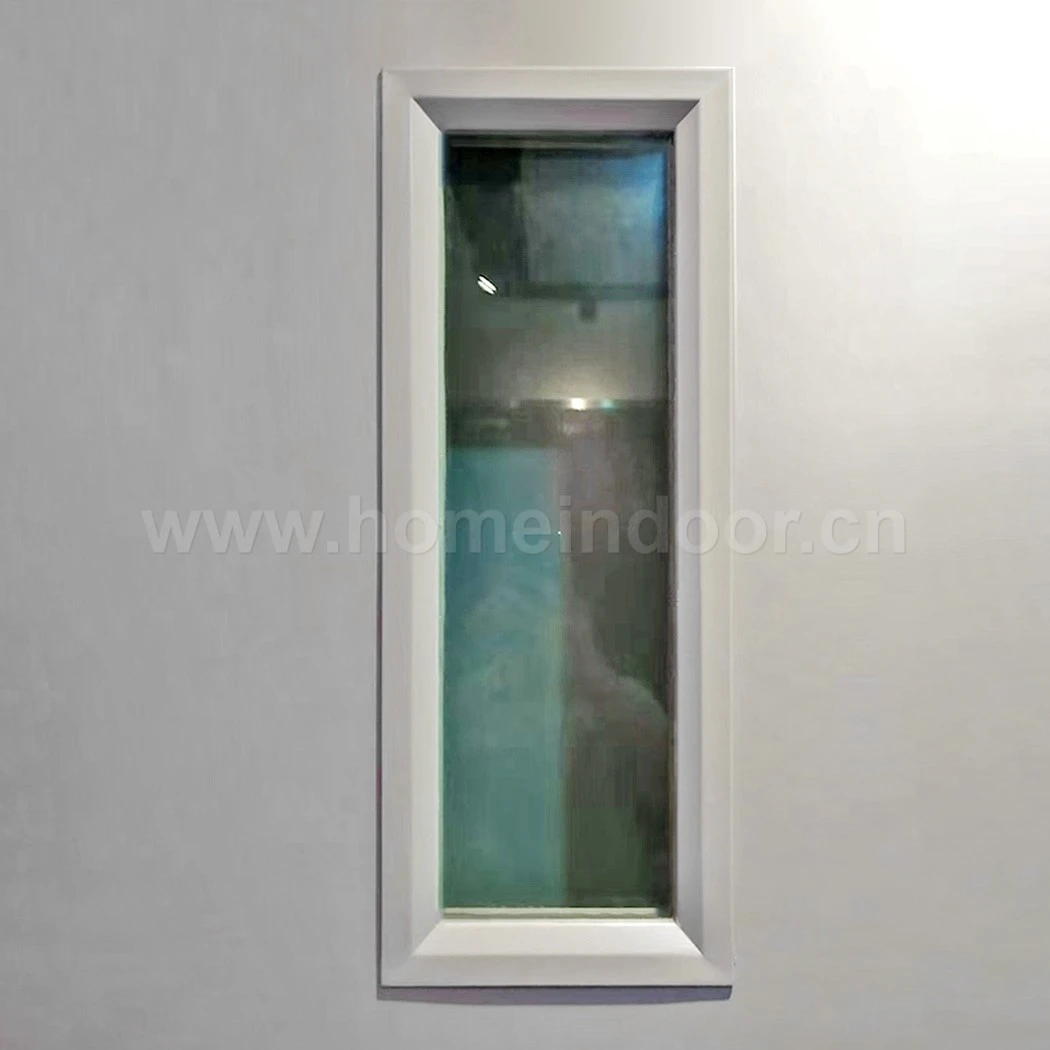

Glass lite (Optional)

Double glass
Double glass

Isolation Double glass 20~40mm thick, standard is 25mm,Fire-resistant up to 90 minutes

NFR Frosted glass
NFR Frosted glass

5mm~12mm optional, standard is 5mm

NFR Clear glass
NFR Clear glass

5mm~12mm optional, standard is 5mm

FR Wired glass
FR Wired glass

90min fire rated; Classified and labeled

Schott FR clear glass
Schott FR clear glass

2 hour fire rated; Classified and labeled

Popular Solid color
