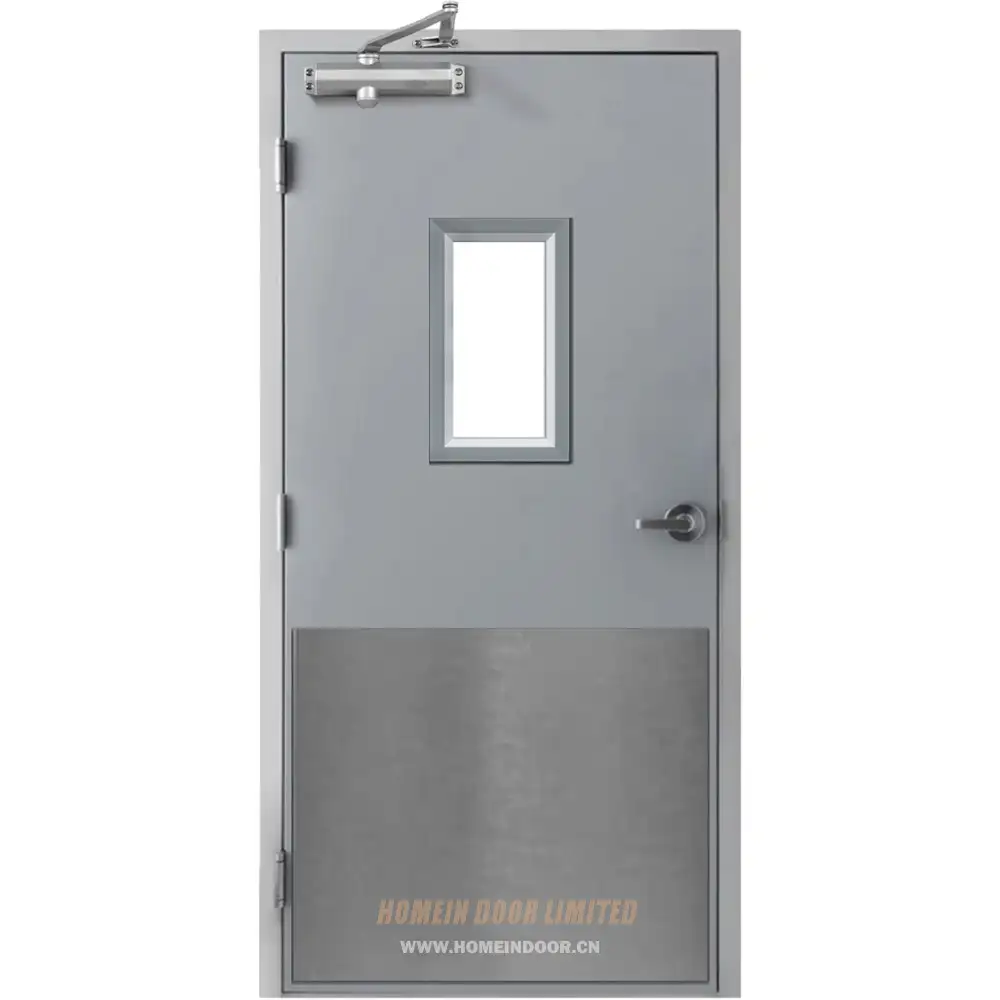

Homein UL certified 2 hours steel fire rated door with vision panel
MOQ: 1PCS
Custom Size
Fast Delivery
Quality Assurance
Item NO.:
CMD09Door Type.:
Single door, swing doorMaterial
Galvanized steelApplication:
Commerical buildingColor:
Powder-coating,GreyDesign:
Flush door with vision panelStyle:
Lead Time:
20 daysSuppliy ability:
2000 Sets per MonthPlace of Origin:
Yongkang city, ChinaCertificate:
UL10c BS476Ref Price:
280 USD
A fire door with a vision panel is a specialized door designed to prevent the spread of fire and smoke while allowing visibility through an integrated window
Our vision panel kit and fire rate glass can reach fireproof grade up to 2 hours; There are three optional glass for vision panel: 1-laminated glass 2- wired glass 3-schott glass; Vision panel kit with intumescent seals to prevent smoke spread, Size of glass vision panel Max up to 0.3 sqm.
| Door material | 0.8~1.2mm Galvanized steel |
|---|---|
| Frame material | 1.2~1.8mm Galvanized steel |
| Door core | Honeycomb; PU; mineral core; acoustic wool |
| Finish | Poweder coating |
| Leaf thick | Std:45mm (customizable) |
| Width | Std:3ft (customizable Max: 1250mm single leaf) |
| Height | Std:7ft (customizable Max: 4000mm) |
| Hardware | Lock; Hinge; Closer |
| STC | Max STC56 |
| Fire rate | Max 120min |
| Width | Std:3ft (customizable Max: 1250mm single leaf) |
Right hand interior
Stand at outside; hinge at right hand; lock at left hand, door swing to inside
Left hand interior
Stand at outside; hinge at left hand; lock at right hand, door swing to inside
Right hand outside
Stand at outside; hinge at right hand; lock at left hand, door swing to outside
Left hand outside
Stand at outside; hinge at left hand; lock at right hand, door swing to outside
-
