Item NO.:
CMD05Door Type.:
Single door, swing doorMaterial
Galvanized Steel + Round GlassApplication:
Commerical buildingColor:
Powder-coating,GreyDesign:
Flush door with round glass panelStyle:
ModernLead Time:
20 daysSuppliy ability:
1500 Sets per MonthPlace of Origin:
Yongkang city, ChinaCertificate:
UL10c BS476Ref Price:

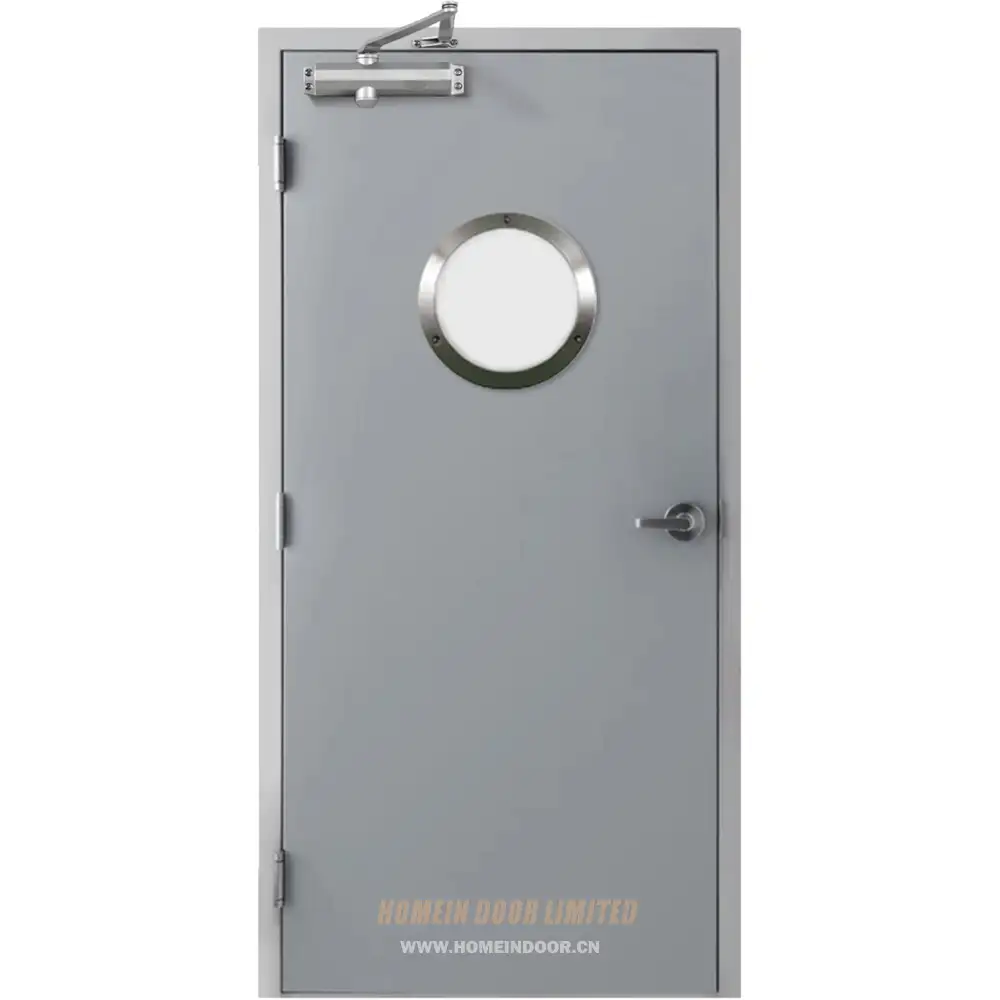

300 USDThe Steel Door with Round Glass is expertly designed for commercial buildings requiring both superior fire protection and inviting aesthetics. Constructed from high-quality galvanized steel and a mineral core, this door offers an impressive fire resistance rating of up to 3 hours, ensuring maximum safety in critical environments.

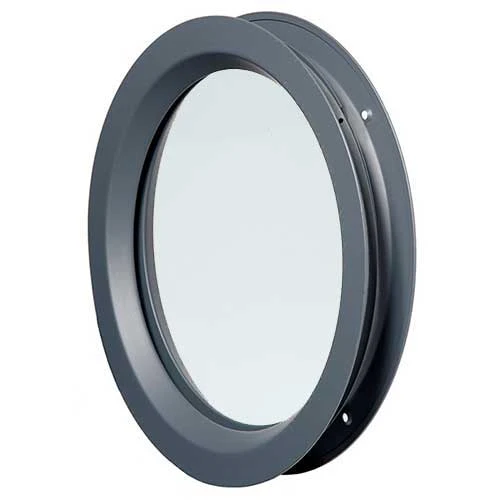

The round glass vision panel is framed with durable SUS304 stainless steel, providing both strength and corrosion resistance. Two glass options are available to suit different needs: laminated glass for standard safety and fire-rated ceramic glass for enhanced fireproof performance.
Beyond safety, the round glass design adds an emotional touch of warmth, comfort, and softness, making it ideal for spaces where a cozy atmosphere is important. This makes it a perfect choice for commercial locations such as school classrooms, kindergarten rooms, and children’s hospitals—places where both safety and a nurturing environment are paramount.
For commercial projects that demand high fireproof standards without sacrificing design, the steel door with round glass panel offers a smart, elegant solution.
| Door material | 0.8~1.2mm Galvanized steel |
|---|---|
| Frame material | 1.2~1.8mm Galvanized steel |
| Door core | Honeycomb; PU; mineral core; acoustic wool |
| Finish | Poweder coating |
| Leaf thick | Std:45mm (customizable) |
| Width | Std:3ft (customizable Max: 1250mm single leaf) |
| Height | Std:7ft (customizable Max: 4000mm) |
| Hardware | Lock; Hinge; Closer |
| STC | Max STC56 |
| Fire rate | Max 120min |
| Width | Std:3ft (customizable Max: 1250mm single leaf) |
Stand at outside; hinge at right hand; lock at left hand, door swing to inside
Stand at outside; hinge at left hand; lock at right hand, door swing to inside
Stand at outside; hinge at right hand; lock at left hand, door swing to outside
Stand at outside; hinge at left hand; lock at right hand, door swing to outside
Door Construction (Optional)
Standard Door Hardware
Glass lite (Optional)
Isolation Double glass 20~40mm thick, standard is 25mm,Fire-resistant up to 90 minutes
5mm~12mm optional, standard is 5mm
5mm~12mm optional, standard is 5mm
90min fire rated; Classified and labeled
2 hour fire rated; Classified and labeled
Popular Solid color
