Homein UL listed metal frame commercial wood exit door with push bar

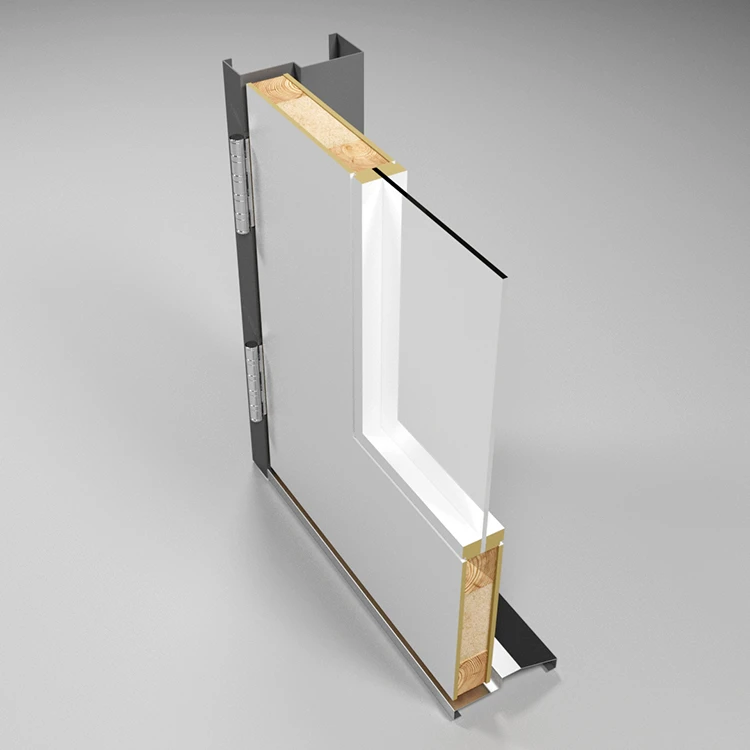

This commercial-grade exit door assembly features a UL listed hollow metal frame, a solid core wood door leaf, and a narrow fire-rated glass vision panel, offering a code-compliant solution for egress routes in offices, schools, healthcare, and hospitality environments. The integrated push bar (panic device) ensures safe and efficient emergency exit functionality.


Key Features:

• Fire Rating: UL listed for 20, 45, 60, or 90 minutes, depending on door core and vision panel configuration. Fully compliant with NFPA 80 and IBC standards for fire doors with glazing.

• Door Construction:

  1. 1-3/4" thick solid core wood door, with mineral core or laminated strand lumber (LSL) core for fire resistance.

  2. Flush design, available in a variety of wood veneers, laminates, or paint-grade finishes.

• Metal Frame:

  1. Hollow metal frame, constructed from 14- or 16-gauge galvanized or cold-rolled steel.

  2. Welded or knock-down design, prepped for wall conditions (drywall, CMU, masonry).

• Vision Panel:

  1. Narrow vertical glass lite (typically 100 sq. in. or less for 45- and 90-minute rated doors).

  2. Glazed with UL-listed fire-rated safety glass (e.g., wired glass or clear ceramic).

  3. Includes metal or wood vision lite kit with intumescent glazing tape (as required for fire rating).

• Exit Hardware:

  1. Panic-rated push bar (exit device) for emergency egress, compliant with ANSI/BHMA and ADA requirements.

  2. Compatible with electrified options for access control integration.

• Additional Options:

  1. Prepped for closer, kickplate, smoke seals, silencers, and bottom seals.

  2. Optional fire-rated door viewer, security astragal, and electronic access components.

• Compliance:

  1. UL listed and labeled for fire resistance.

  2. Complies with NFPA 80, NFPA 101, ADA, and IBC codes.

  3. FSC-certified wood core available upon request.

This assembly delivers a high-performance, code-compliant exit door solution that balances fire protection, safety, and aesthetics—ideal for any commercial building requiring visible yet secure egress paths.
