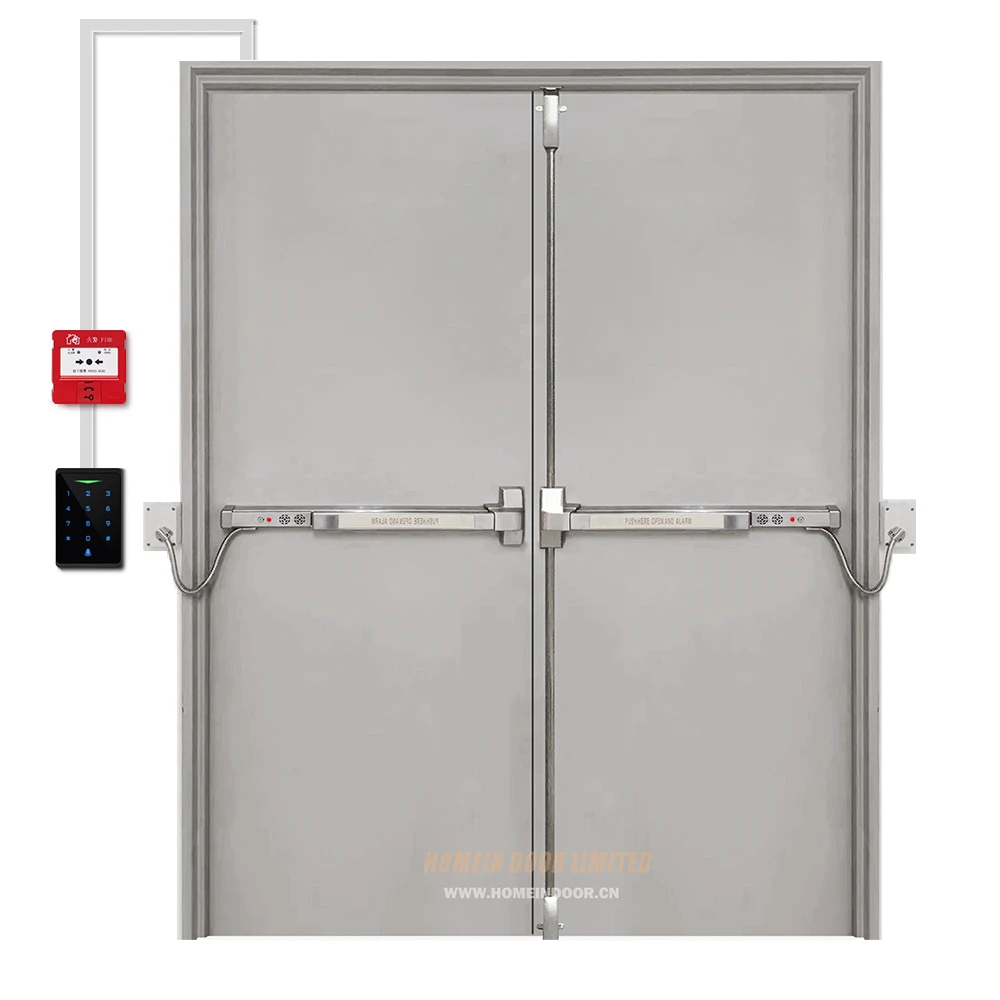

Homein Steel Fireproof Double Keycard Security access control Emergency Exit Door

MOQ: 1PCS Custom Size Fast Delivery Quality Assurance
  • Item NO.:

    SMXD04
  • Door Type.:

    Double door, swing door
  • Material

    Metal + Mineral core
  • Application:

    Emergency exit
  • Color:

    Powder-coating,Grey
  • Design:

    Flush door
  • Style:

  • Lead Time:

    30 days
  • Suppliy ability:

    1500 Sets per Month
  • Place of Origin:

    Yongkang city, China
  • Certificate:

    UL10c BS476
  • Ref Price:

    700 USD

Security access control Emergency Exit Door is a exit doors equipped with security access control systems, At the same time, These door security access control system needs to be integrated into the whole building fire protection system; Typically used to secure exits in buildings while still allowing for safe egress.


Components of a Security Access-Controlled Exit Door

  1. Electric Locking Mechanism alarm push bar
  2. Access Control Reader,Card Reader, Keypad, fingerprint, or Mobile Access for controlling who can exit and entry.
  3. Emergency Override,Fail-Safe Mechanism: Door unlocks during power failure or fire alarm.Fire Alarm Integration: Automatically releases locks when triggered.
  4. Control Panel / Access Controller,Manages user credentials, schedules, logs of entries/exits, and integrates with alarms.
  5. Egress Device,Push-to-Exit Button: Required by code in many areas if maglocks are used.Motion Sensor: Automatically unlocks the door when someone approaches from the inside.


Door material 0.8~1.2mm Galvanized steel
Frame material 1.2~1.8mm Galvanized steel
Door core Honeycomb; PU; mineral core; acoustic wool
Finish Poweder coating
Leaf thick Std:45mm (customizable)
Width Std:3ft (customizable Max: 1250mm single leaf)
Height Std:7ft (customizable Max: 4000mm)
Hardware Electronic Push bar & trim with alarm system; Hinge; Closer
STC Max STC56
Fire rate Max 120min
door handing Right hand active interior
Right hand active interior

Stand at outside; right leaf active; lock at righ leaf, door swing to inside

door handing Left hand active interior
Left hand active interior

Stand at outside; left leaf active; lock at left leaf, door swing to inside

door handing Right hand active outside
Right hand active outside

Stand at outside; right leaf active; lock at right leaf, door swing to outside

door handing Left hand active outside
Left hand active outside

Stand at outside; left leaf active; lock at left leaf, door swing to outside

Door Construction (Optional)

Standard Door Hardware

Accesss control System
Accesss control System

Components: Electric Locking alarm push bar,Access Control Reader,Push-to-Exit Button etc.

View More >>>
Hydraulic closer
Hydraulic closer

Aluminum alloy; adjustable speed; Fire rate up to 1.5hours

View More >>>
Butt Hinge
Butt Hinge

SUS304 stainless steel; Size in 4''*4''*3mm or 4''*3''*3mm; 2BB; SUS304 screw; ; Fire rate up to 3hours

View More >>>
Acoustic seal
Acoustic seal

12*12mm acoustic seal; STC 33Db; Durable rubber; self-stick;

View More >>>

Veneer & Texture

Popular Solid color
