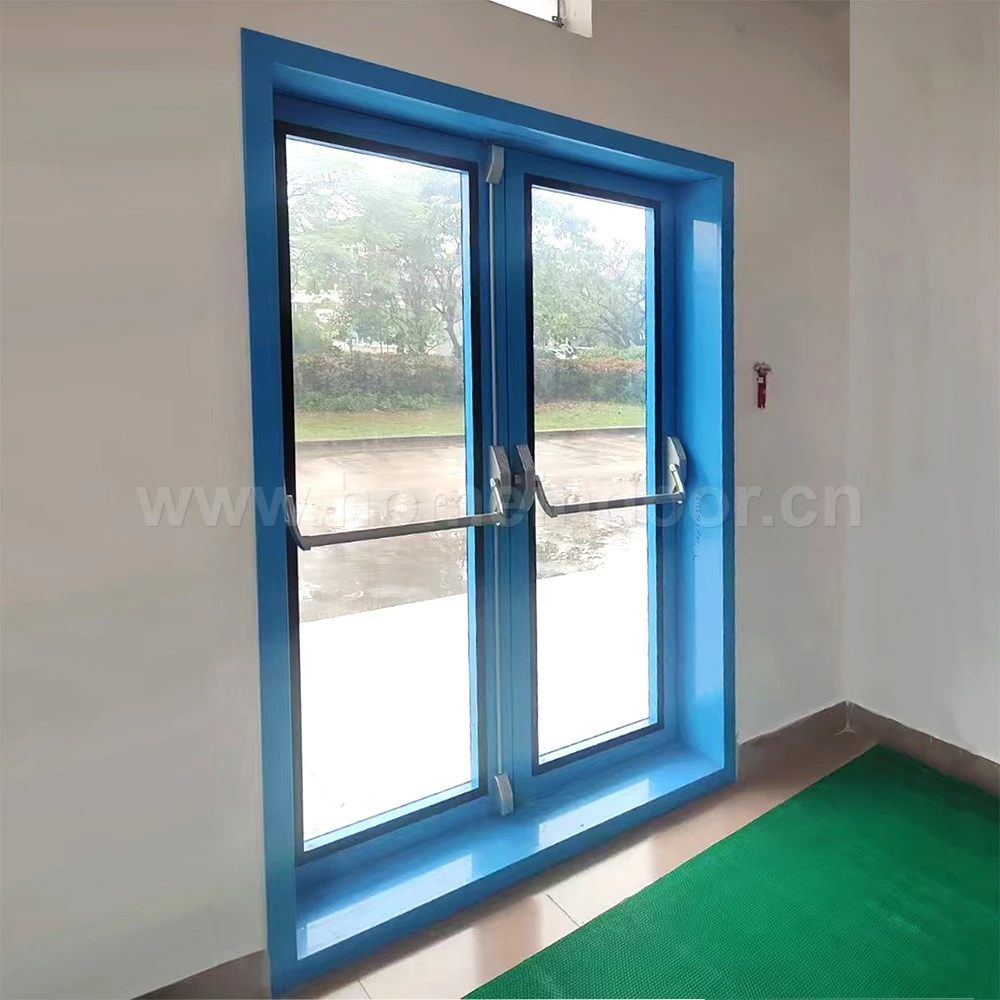

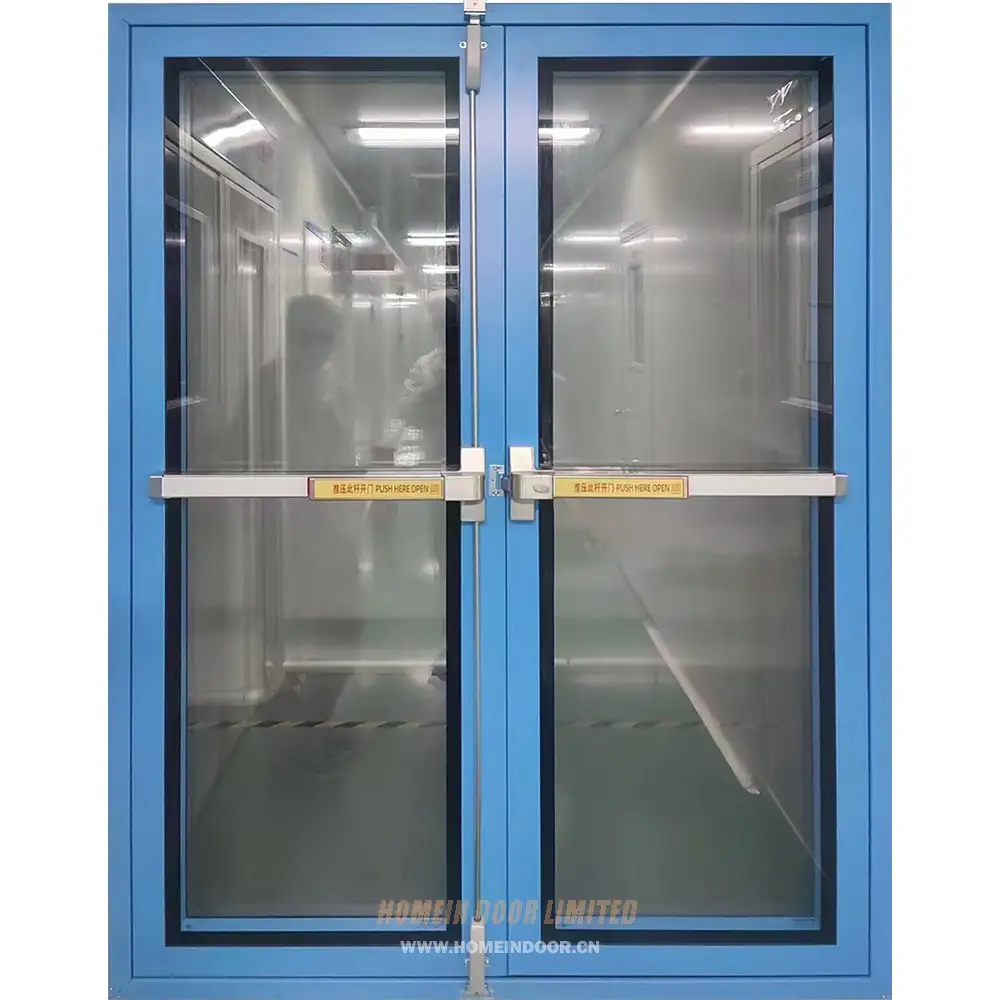

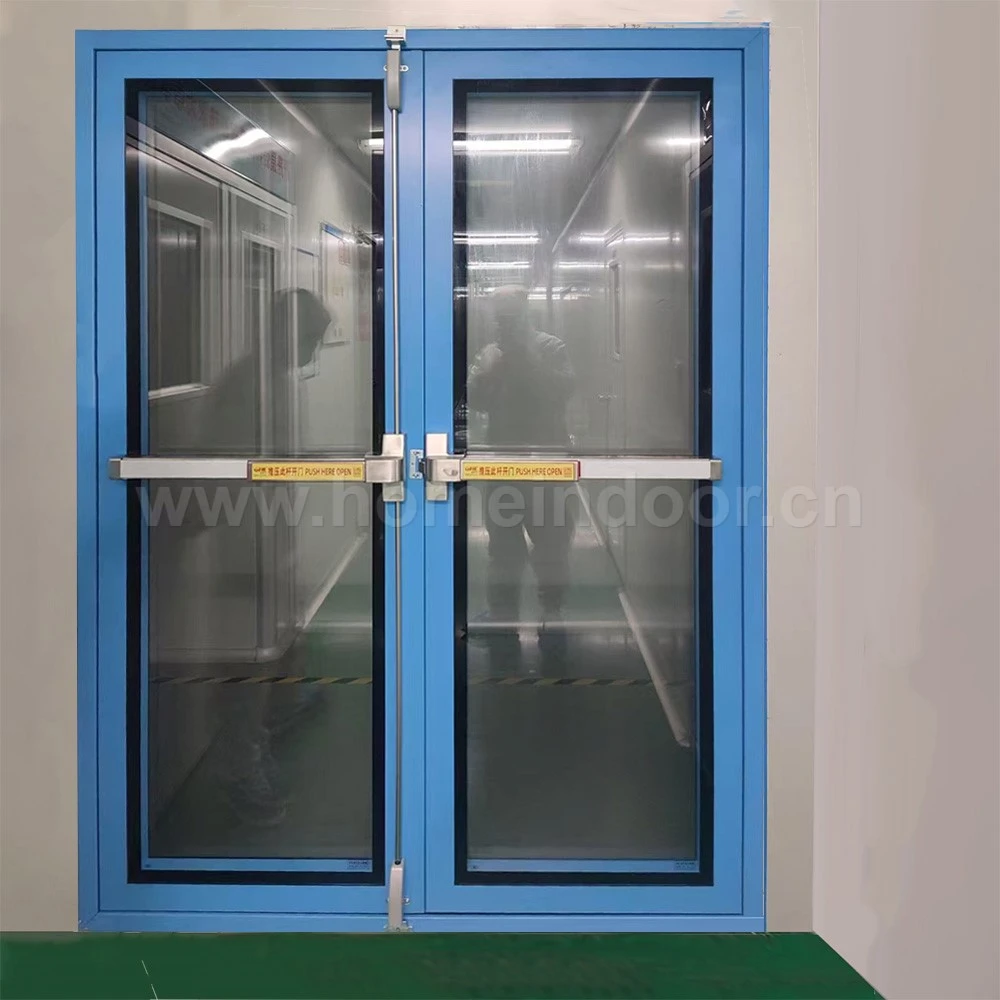

Homein Commerical External Exit Steel all Glass Double Door with Push Bar
MOQ: 1PCS
Custom Size
Fast Delivery
Quality Assurance
Item NO.:
GEXD07Door Type.:
Double door, swing doorMaterial
Glass+metalApplication:
Emergency exitColor:
BLUEDesign:
steel door with full glassStyle:
Lead Time:
30 daysSuppliy ability:
2000 Sets per MonthPlace of Origin:
Yongkang city, ChinaCertificate:
-Ref Price:
550 USD
Glass Double Door with Push Bar is used in places where both high-traffic safe exit and visibility are important. Large full glass panels flood spaces with natural light, reducing the need for artificial lighting. Glass Double Door can reach maximum width 2440mm, Perfect for high-traffic exit where people need Rapid evacuation
Glass exit door consist of fireproof glass framed with galvanzied steel narrow frame,Under the condition that the fire rating is guaranteed, Narrow possible frame size make glass bigger possible, Maximize the light transmission area of the door，Our Glass exit door can reach fire rate up to max 90 minutes and Doors with 80% light transmission area
| Door material | 0.8~1.2mm Galvanized steel |
|---|---|
| Frame material | 1.2~1.8mm Galvanized steel |
| Door core | Honeycomb; PU; mineral core; acoustic wool |
| Finish | Poweder coating |
| Leaf thick | Std:45mm (customizable) |
| Width | Std:3ft (customizable Max: 1250mm single leaf) |
| Height | Std:7ft (customizable Max: 4000mm) |
| Hardware | Push bar; Hinge; Closer |
| STC | Max STC42 |
| Fire rate | Max 60min |
| Glass | Double laminated glass |
Right hand active interior
Stand at outside; right leaf active; lock at righ leaf, door swing to inside
Left hand active interior
Stand at outside; left leaf active; lock at left leaf, door swing to inside
Right hand active outside
Stand at outside; right leaf active; lock at right leaf, door swing to outside
Left hand active outside
Stand at outside; left leaf active; lock at left leaf, door swing to outside
Door Construction (Optional)
Standard Door Hardware
Push bar for double door A
SUS304 or Galvanized steel material; Fire rate up to 3 hours; with vertical top and bottom rod, with outer trim in SUS304 or zinc alloy
View More >>>
Push bar for double door B
Galvanized steel material; with vertical top and bottom rod, with steel outer trim
View More >>>
Push bar for double door C
Galvanized steel material; with vertical top and bottom rod, with steel outer trim
View More >>>
Butt Hinge
SUS304 stainless steel; Size in 4''*4''*3mm or 4''*3''*3mm; 2BB; SUS304 screw; ; Fire rate up to 3 hours
View More >>>Popular Solid color
-
