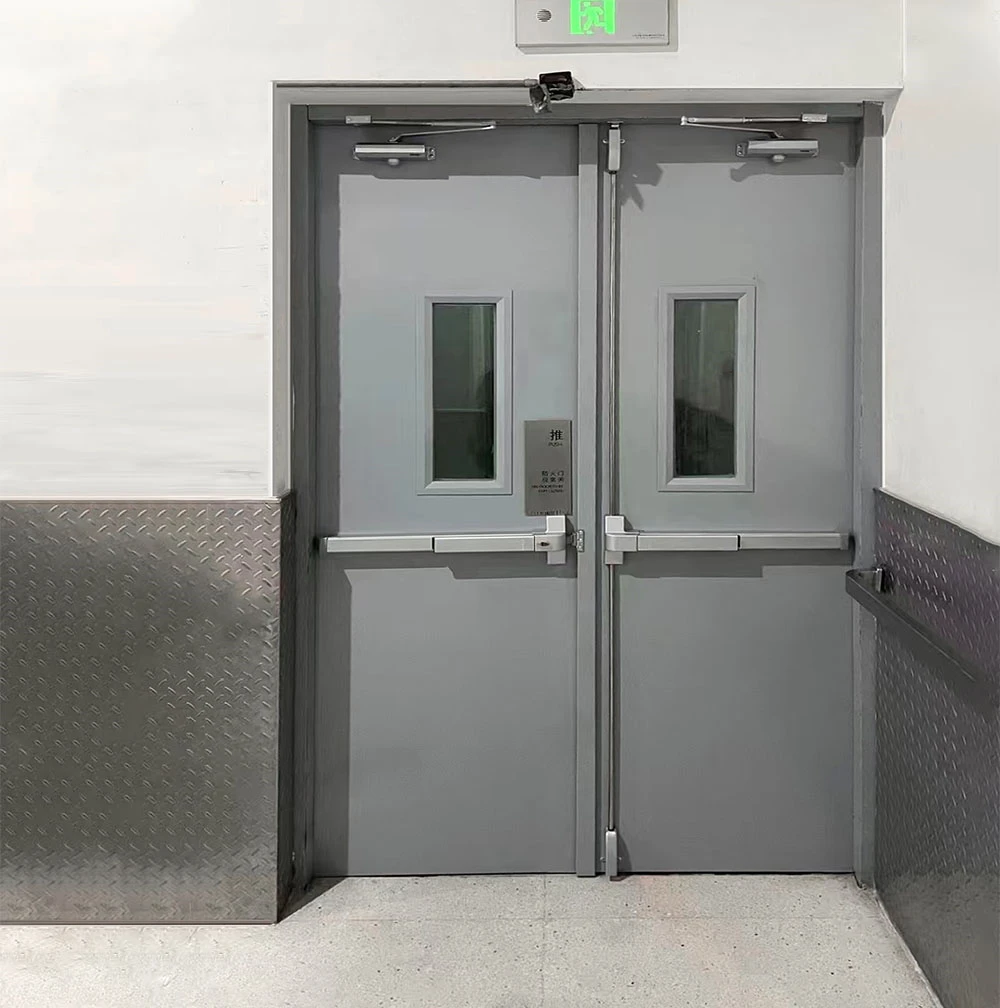

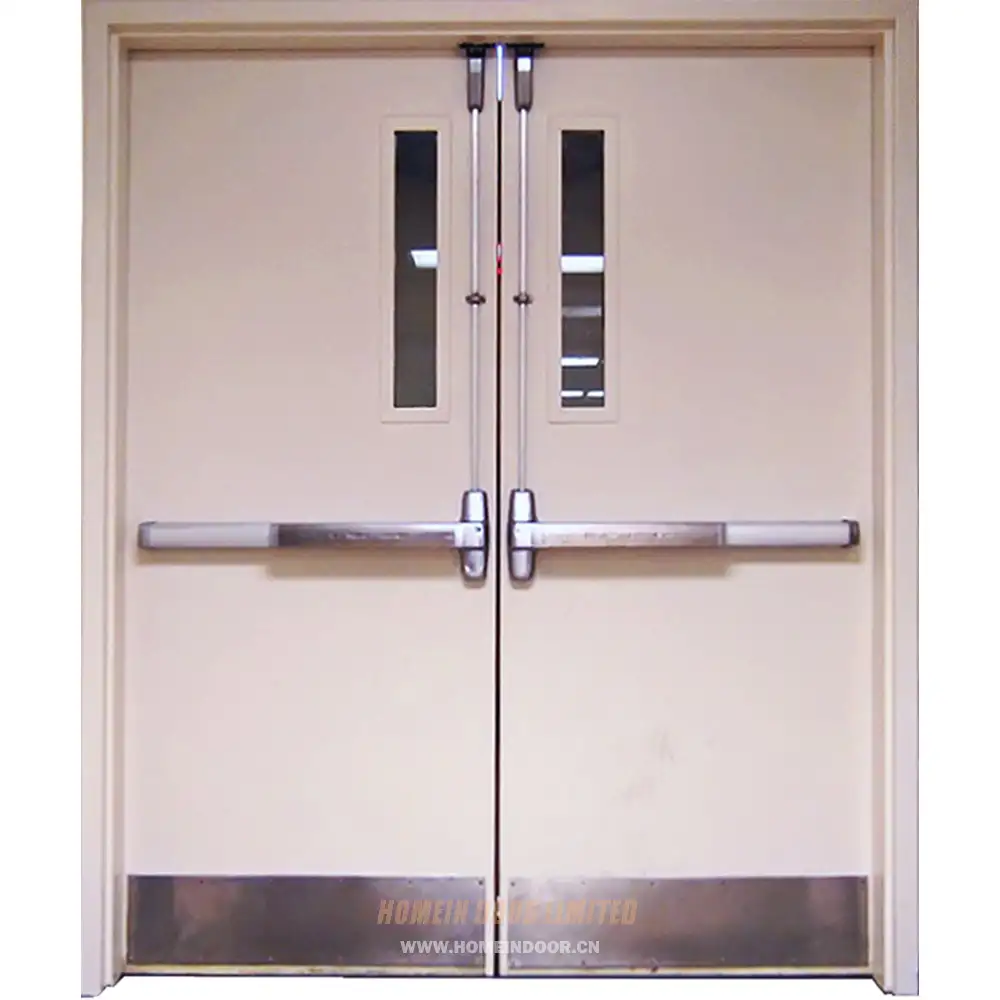

Homein UL 90 mins steel fireproof emergency exit double door with glass panel
MOQ: 1PCS
Custom Size
Fast Delivery
Quality Assurance
Item NO.:
PBM08Door Type.:
Double door, swing doorMaterial
Galvanized steelApplication:
Emergency exitColor:
Powder-coating,GreyDesign:
Flush door with glass liteStyle:
Lead Time:
20 daysSuppliy ability:
1000 Sets per MonthPlace of Origin:
Yongkang city, ChinaCertificate:
UL10CRef Price:
500 USD
| Door material | 0.8~1.2mm Galvanized steel |
|---|---|
| Frame material | 1.2~1.8mm Galvanized steel |
| Door core | Mineral core; acoustic wool |
| Finish | Powder coating |
| Leaf thick | Std:45mm (customizable) |
| Width | Std:3ft (customizable Max: 1250mm single leaf) |
| Height | Std:7ft (customizable Max: 4000mm) |
| Hardware | Push bar & trim; Hinge; Closer |
| STC | STC45 STC56 |
| Fire rate | 120 minutes, 180 minutes |
Right hand active interior
Stand at outside; right leaf active; lock at righ leaf, door swing to inside
Left hand active interior
Stand at outside; left leaf active; lock at left leaf, door swing to inside
Right hand active outside
Stand at outside; right leaf active; lock at right leaf, door swing to outside
Left hand active outside
Stand at outside; left leaf active; lock at left leaf, door swing to outside
Door Construction (Optional)
Standard Door Hardware
Push bar for double door A
SUS304 or Galvanized steel material; Fire rate up to 3 hours; with vertical top and bottom rod, with outer trim in SUS304 or zinc alloy
View More >>>
Push bar for double door B
Galvanized steel material; with vertical top and bottom rod, with steel outer trim
View More >>>
Push bar for double door C
Galvanized steel material; with vertical top and bottom rod, with steel outer trim
View More >>>
Butt Hinge
SUS304 stainless steel; Size in 4''*4''*3mm or 4''*3''*3mm; 2BB; SUS304 screw; ; Fire rate up to 3 hours
View More >>>Glass lite (Optional)
Double glass
Isolation Double glass 20~40mm thick, standard is 25mm,Fire-resistant up to 90 minutes
NFR Frosted glass
5mm~12mm optional, standard is 5mm
NFR Clear glass
5mm~12mm optional, standard is 5mm
FR Wired glass
90min fire rated; Classified and labeled
Schott FR clear glass
2 hour fire rated; Classified and labeled
Popular Solid color
-
