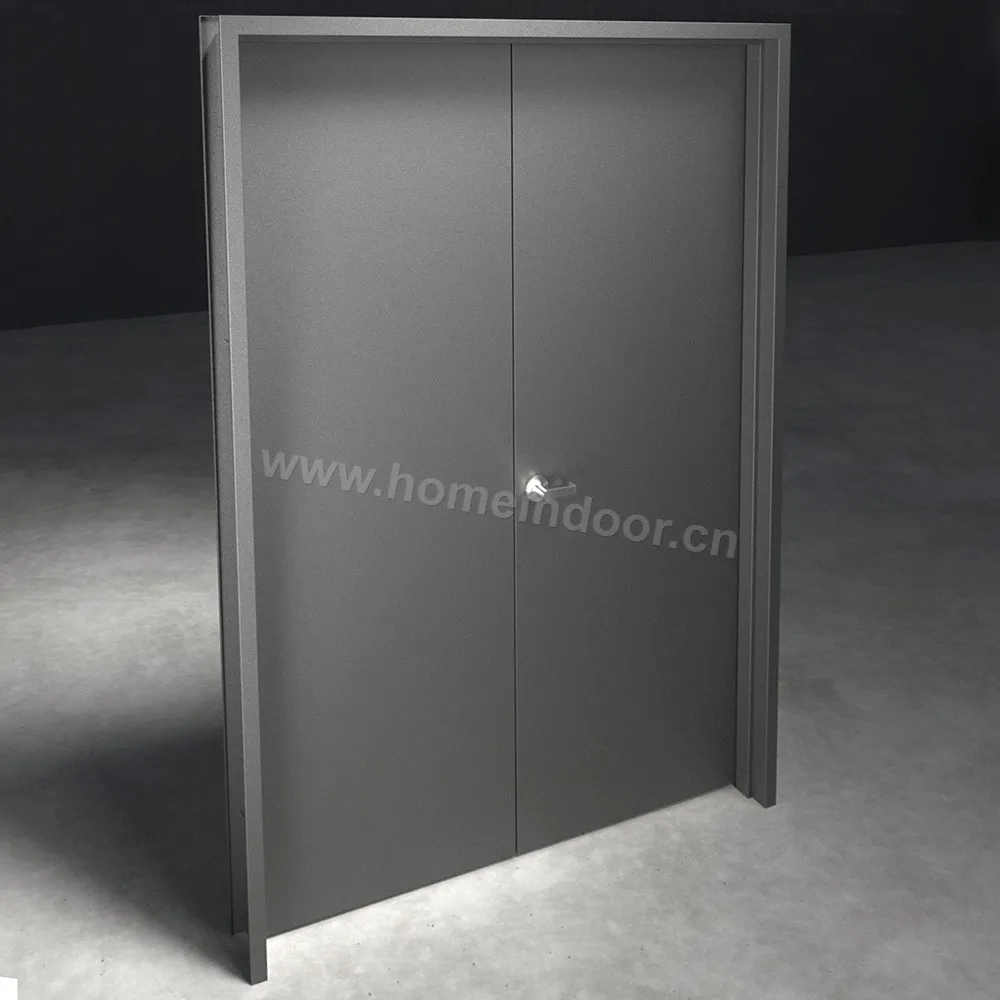

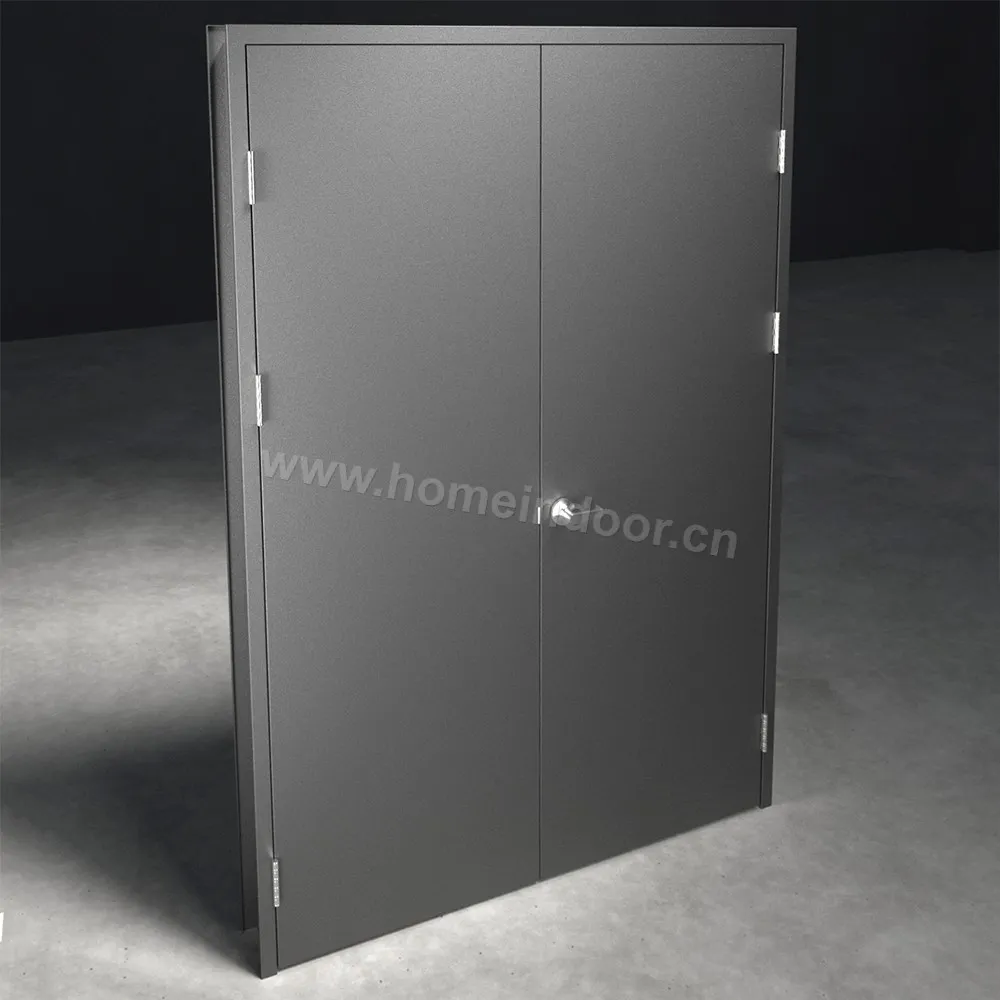

Homein UL fire rated custom size commercial steel double door

MOQ: 1PCS Custom Size Fast Delivery Quality Assurance
  • Item NO.:

    CMD10
  • Door Type.:

    Double door, swing door
  • Material

    Galvanized steel+mineral core
  • Application:

    Commerical building
  • Color:

    Powder-coating, Grey
  • Design:

    Flush door
  • Style:

    Modern
  • Lead Time:

    20 days
  • Suppliy ability:

    1500 Sets per Month
  • Place of Origin:

    Yongkang city, China
  • Certificate:

    UL10c BS476
  • Ref Price:

    380 USD


UL Fire Rated Custom Size Commercial Steel Double Door – Safe and Strong

A UL fire rated custom size commercial steel double door is an ideal solution for buildings that require high safety standards and durability. Certified by UL and EN1634, this door offers a fire resistance rating of up to 2 hours, providing reliable protection during emergencies. It meets strict safety regulations to help keep people and property safe.

The door size can be customized to fit your building perfectly, with a maximum height of 3000mm and maximum width of 2440mm. This flexibility makes it suitable for a variety of commercial spaces, including offices, hospitals, schools, and warehouses.

The door leaf is made from high-quality 1.0mm galvanized steel panel with an inner stiffener to improve strength and durability. It features a Homein new porous mineral core that enhances fire resistance and thermal insulation, ensuring the door performs well under extreme conditions.

The door frame is constructed from 1.5mm galvanized steel hollow sections. You can choose between a welded prehung frame or a knock-down frame, depending on your installation needs. Our frames come with various anchors designed to fit different wall types, making installation easier and more secure.

Additionally, the door frame is equipped with a high-expand rate smoke seal strip that activates during fire, helping to block smoke and toxic gases from spreading, increasing safety for building occupants.

Overall, a UL fire rated custom size commercial steel double door offers a perfect combination of safety, strength, and adaptability. It is a dependable choice for commercial buildings seeking fire protection without compromising on quality or customization.


Door material 0.8~1.2mm Galvanized steel
Frame material 1.2~1.8mm Galvanized steel
Door core Honeycomb; PU; mineral core; acoustic wool
Finish Poweder coating
Leaf thick Std:45mm (customizable)
Width Std:3ft (customizable Max: 1250mm single leaf)
Height Std:7ft (customizable Max: 4000mm)
Hardware Lock; Hinge; Closer
STC Max STC56
Fire rate Max 120min
Width Std:3ft (customizable Max: 1250mm single leaf)
door handing Right hand active interior
Right hand active interior

Stand at outside; right leaf active; lock at righ leaf, door swing to inside

door handing Left hand active interior
Left hand active interior

Stand at outside; left leaf active; lock at left leaf, door swing to inside

door handing Right hand active outside
Right hand active outside

Stand at outside; right leaf active; lock at right leaf, door swing to outside

door handing Left hand active outside
Left hand active outside

Stand at outside; left leaf active; lock at left leaf, door swing to outside

Door Construction (Optional)

Standard Door Hardware

Push bar A (Standard)
Push bar A (Standard)

SUS304 or Galvanized steel material; Fire rate up to 3 hours; with outer trim in SUS304 or zinc alloy

View More >>>
Push bar B
Push bar B

Galvanized steel material; with outer trim

View More >>>
Push bar C
Push bar C

SUS304 material; with outer trim

View More >>>
Hydraulic closer
Hydraulic closer

Aluminum alloy; adjustable speed; Fire rate up to 1.5hours

View More >>>
Butt Hinge
Butt Hinge

SUS304 stainless steel; Size in 4''*4''*3mm or 4''*3''*3mm; 2BB; SUS304 screw; ; Fire rate up to 3hours

View More >>>
Acoustic seal
Acoustic seal

12*12mm acoustic seal; STC 33Db; Durable rubber; self-stick;

View More >>>

Popular Solid color
